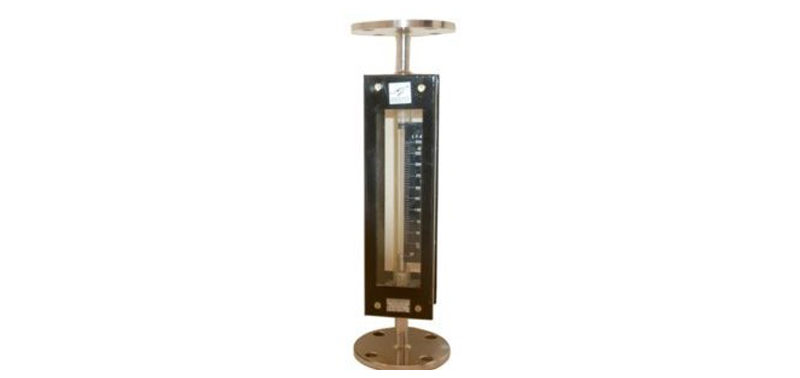

Glass Tube Rotameter (Model No. RJN-GTR-21)
Glass Tube Rotameter Designed on variable area basis using tappered borosilicate glass tube pressure rating at 10 kg/cm2 temp at 150°C.
- Flow Range: 10 to 30,000 LPH of water / Liquid & 0.1 to 750 Nm3/hr of Air/Gas at NTP
- Fluid: Liquids & Gases
- Density / Specific Gravity: Up to 1.85
- Line Size: ½” to 4”
- Material of wetted part: MS / CS / SS304 / SS316 / PP / PVC / PTFE Lined MS or SS
- Viscosity: Up to 100 cp, Temperature: Up to 150°C
- Pressure: Up to 10 kg/cm2
- Accuracy: ±2 % full scale reading
- Accessories: * Steam jacketing * Screwed * Flanged Hose – connection * High & Low Flow Alarms
