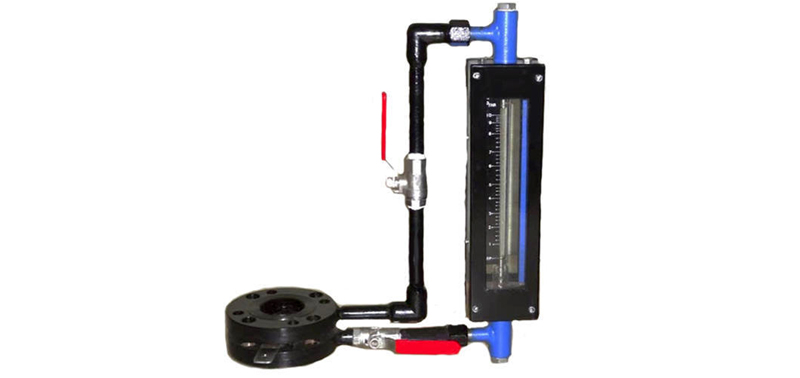

By Pass Rotameter (Orifice Assembly)(Model No. RJN-BPR-22)
By Pass Rotameter Suitable for high range of fluid in pipe line between 2'" or above upto 300 mm NB. Where on line rotameter cant be used. It consist of one orifice plate to be mounted in the pipe line between two flange. one more integral orifice with two inlet & outlet & one by pass rotameter is provided to read, direct flow.
- Orifice Range: 25 to 800M3/hr of water
- Fluid: Liquids & Gases
- Material of wetted part: MS / CS / SS304 / SS316
- Orifice : SS 304 / SS 316
- Accuracy: ±2 % full scale reading
- Accessories: *Isolation valve * High & low flow alarms * With 4-20mA two wire transmitter * Digital Indicator, Totaliser
