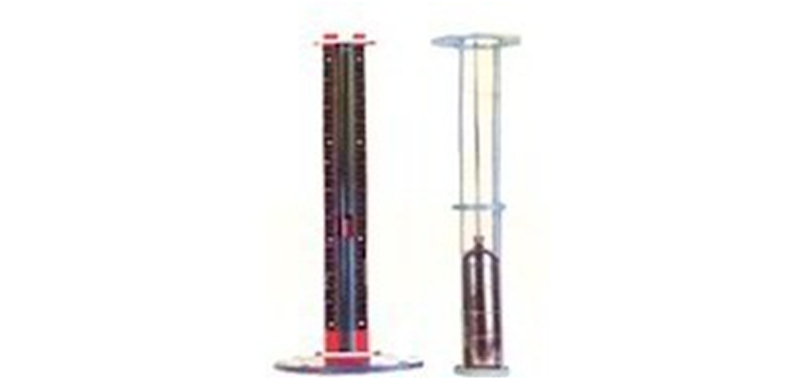

Top Mounted Magnetic Level Indicator (Model No.RJN-TMMLI-07)
Top Mounted Magnetic Level Indicator is a simple principle of mechanics & magnetism harnessed to offer an absolutely safe, reliable & trust worthy level indicator for dangerous & toxic liquids under high pressure & temperature. As the liquid level rises in the tank, the float is lifted up due to buoyancy. The float carries a stem attached to it & on the other side of the stem a magnet is fixed. The float stem moves inside an SS enclose. External to this enclose is a glass tube, which carries the magnetic follower. Due to magnetic attraction, the magnet on the float stem & the magnetic follower also moves inside the glass tube, & the position of the follower can be read against the scale.
- Liquids: Acids / Alkalies / Solvents /Oils / Lubricants / Liquid Gases Stored in Underground or Over Ground Tanks.
- Density / Specific Gravity : Minimum 0.6
- Range (Tank Height): 0 – 3.0 Mtr
- Material of Wetted Parts: SS304 / SS316 / PTFE Lined SS / PVC / PP
- Connection: Flanged to ASA / BS DIN / Triclover
- Minimum Nozzle size required 4” NB for Liquids Below 0.8 Density
- Temperature: Up to 350° C, Pressure: Up to 20 Kg/cm²,
- Viscosity: Up to 250cp
